loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Cr Heavy Duty Base Frame
Manufacturer: Ki Mobility

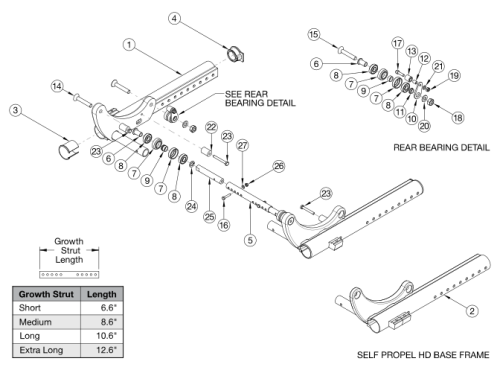

Focus Cr Heavy Duty Base Frame parts diagram
(Click on image to enlarge)

Color Codes Heavy Duty Base Frame required for X-Large (20"-24") Frame Width Range
Pos. Part # Description Price UOM Buy
6 - 9, 14 503536 Front Bearing Kit Heavy Duty Focus (1 Side)
$139.32
EA
6 - 13, 15, 17, 19, 21 503537 Rear Bearing Kit Heavy Duty Focus (1 Side)
$233.14
EA
6 - 15, 17, 19, 21 503538 Bearing Replacement Kit Heavy Duty Focus
$482.79
EA
1a, 3, 4 503429_ _ _ Base Frame Heavy Duty Assembly Right, Focus
$539.86
EA
1b, 3, 4 503430_ _ _ Base Frame Heavy Duty Assembly Left, Focus
$539.86
EA
2a, 3, 4 503415_ _ _ Base Frame Heavy Duty Self Propel Assembly Right, Focus
$589.95
EA
2b, 3, 4 503416_ _ _ Base Frame Heavy Duty Self Propel Assembly Left, Focus
$589.95
EA
3 001009 Sleeve Base Frame TILT
$6.04
4 001010 Plug Base Frame TILT
$11.33
5a 001030 Growth Strut Rotary Short TILT- Used on Small Width Range
$26.41
EA
5b 001031 Growth Strut Rotary Medium TILT- Used on Medium Width Range
$28.94
EA
5c 001032 Growth Strut Rotary Long TILT- Used on Large Width Range
$31.43
EA
5d 112004 Growth Strut Rotary X-Long TILT- Used on X-Large Width Range
$34.17
EA
6 001014 Bearing Shaft TILT
$27.70
7 001015 Bearing Liner TILT
$6.04
8 100902 Bearing 1 1/8" x 1/2" R8RS
$7.06
EA
9 001016 Bearing Spacer TILT
$7.55
10 001017 Swivel Plate TILT
$8.30
12 001019 Bearing Shaft Upper
$6.29
13 001020 Bearing Upper TILT
$6.04
14 101816 M10 x 50 FHCS Blk Zn
$4.12
15 101817 M10 x 60 FHCS Blk Zn
$5.30
16 101821 M5 x 25 HHCS Blk Zn
$1.17
EA
17 101845 M6 x 22 SHCS Blk Zn
$1.77
18 101840 M10 Nylock Nut Blk Zn
$1.17
EA
19 100658 M6 Nylock Nut Blk Zn
$1.17
EA
20 101859 M10 Flat Washer Blk Zn
$0.60
EA
21 100746 M6 Flat Washer Blk Zn
$1.77
EA
22 001405 Spacer, .69OD x .24ID x .1.01Lg
$29.16
23 103511 M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921
$3.53
24 102337 Lockwasher, M10, Blk Zn
$0.60
25 001300 Strut End HD TILT- Required if retrofitting to HD
$30.60
26 100657 M5 Nylock Nut Blk Zn
$0.60
EA
27 101856 Flat Washer, M5, Blk Zn
$0.60
EA
28a 001011 Growth Strut, Base, Small Tilt
$21.18
EA
28b 001012 Growth Strut, Base, Medium Tilt
$21.18
EA
28c 001013 Growth Strut, Base, Large Tilt
$21.18
EA
28d 112005 Growth Strut, Base, X-Large Tilt
$23.50
EA
29 001014 Bearing Shaft TILT
$27.70
