loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Cr Wheel Lock
Manufacturer: Ki Mobility

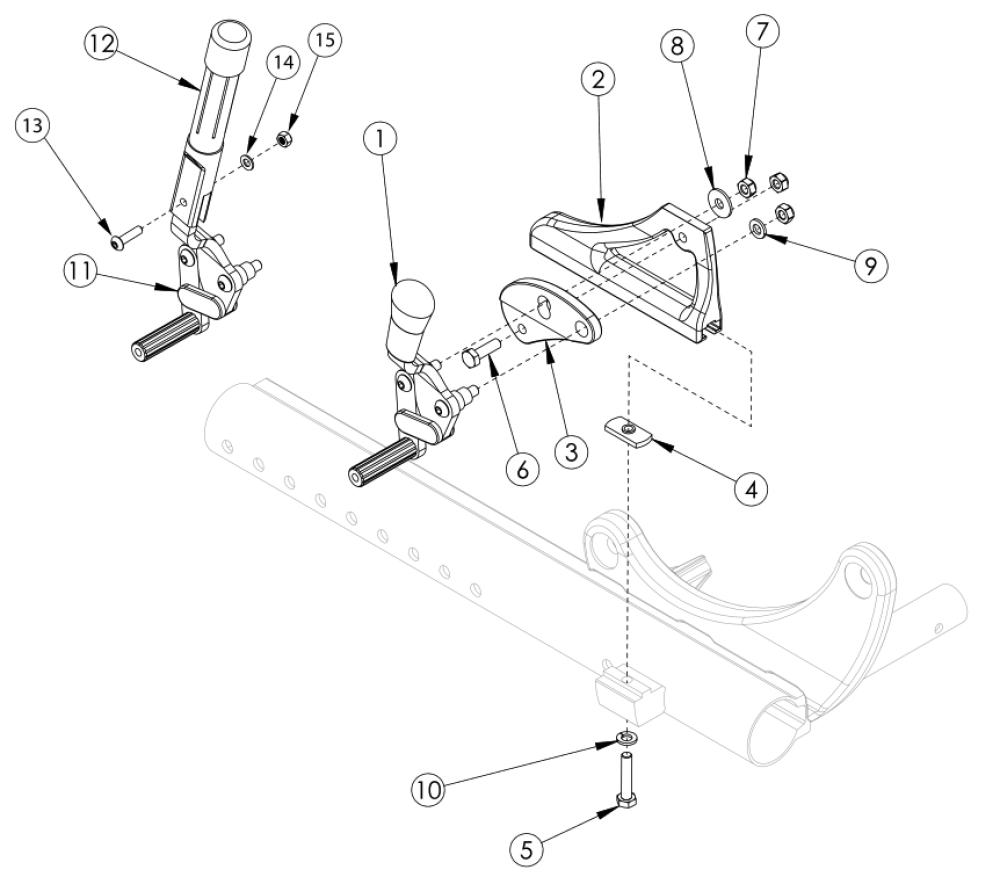

Focus Cr Wheel Lock parts diagram
(Click on image to enlarge)

Standard vs Inverted Axle Plates Does the chair have a combination wheel lock? If yes, please see the combination wheel lock parts manual page.
Attachments:
Pos. Part # Description Price UOM Buy
1a, 2b, 3a, 4 - 10 501486 Wheel Lock Assembly Push Left Focus
$54.46
EA
1b, 2a, 3a, 4 - 10 501487 Wheel Lock Assembly Push Right Focus
$54.46
EA
1a, 1b, 2a, 2b, 3a, 4 - 10 501113 Wheel Lock Assembly Push PAIR Focus
$108.94
EA
2b, 3a, 4 - 10, 11a, 12 - 15 501488 Wheel Lock Assembly Push w/ Ext Left Focus
$91.19
EA
2a, 3a, 4 - 10, 11b, 12 - 15 501489 Wheel Lock Assembly Push w/ Ext Right Focus
$91.19
EA
2a, 2b, 3a, 4 - 10, 11a, 11b, 12 - 15 501114 Wheel Lock Assembly Push w/ Ext PAIR Focus
$182.37
EA
1c, 2b, 3b, 4 - 10 501490 Wheel Lock Assembly Pull Left Focus
$54.46
EA
1d, 2a, 3b, 4 - 10 501491 Wheel Lock Assembly Pull Right Focus
$54.46
EA
1c, 1d, 2a, 2b, 3b, 4 - 10 501115 Wheel Lock Assembly Pull PAIR Focus
$108.94
EA
2b, 3b, 4 - 10, 11c, 12 - 15 501492 Wheel Lock Assembly Pull w/ Ext Left Focus
$91.19
EA
2a, 3b, 4 - 10, 11d, 12 - 15 501493 Wheel Lock Assembly Pull w/ Ext Right Focus
$91.19
EA
2a, 2b, 3b, 4 - 10, 11c, 11d, 12 - 15 501116 Wheel Lock Assembly Pull w/ Ext PAIR Focus
$182.37
EA
2a 001138 Plate Wheel Lock Right Tilt
$18.27
EA
2b 001139 Plate Wheel Lock Left Tilt
$18.27
EA
3a 003769 Wheel Lock Mount Push Tilt- Replaced 001140
$18.82
EA
3b 003770 Wheel Lock Mount Pull Tilt- Replaced 001238
$36.41
EA
4 001141 Weld Nut NDM 06028 Zinc
$2.94
EA
5 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
6 101823 M6 x 20 HHCS Blk Zn
$1.17
EA
7 100658 M6 Nylock Nut Blk Zn
$1.17
EA
8 101853 M6 Washer Blk Zn
$0.60
EA
9 100746 M6 Flat Washer Blk Zn
$1.77
EA
10 101835 M6 Lock Washer Blk Zn
$0.60
EA
12 - 15 100854 Brake Extension Replacement
$39.98
EA
13 101117 M5 x 22 BTN SHCS BLK ZC
$1.77
EA
14 101856 Flat Washer, M5, Blk Zn
$0.60
EA
15 100657 M5 Nylock Nut Blk Zn
$0.60
EA
