Focus Cr
Name: Focus CR: (discontinued 2) Focus Cr Dual Hand Tilt Mechanism Stroller Back
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

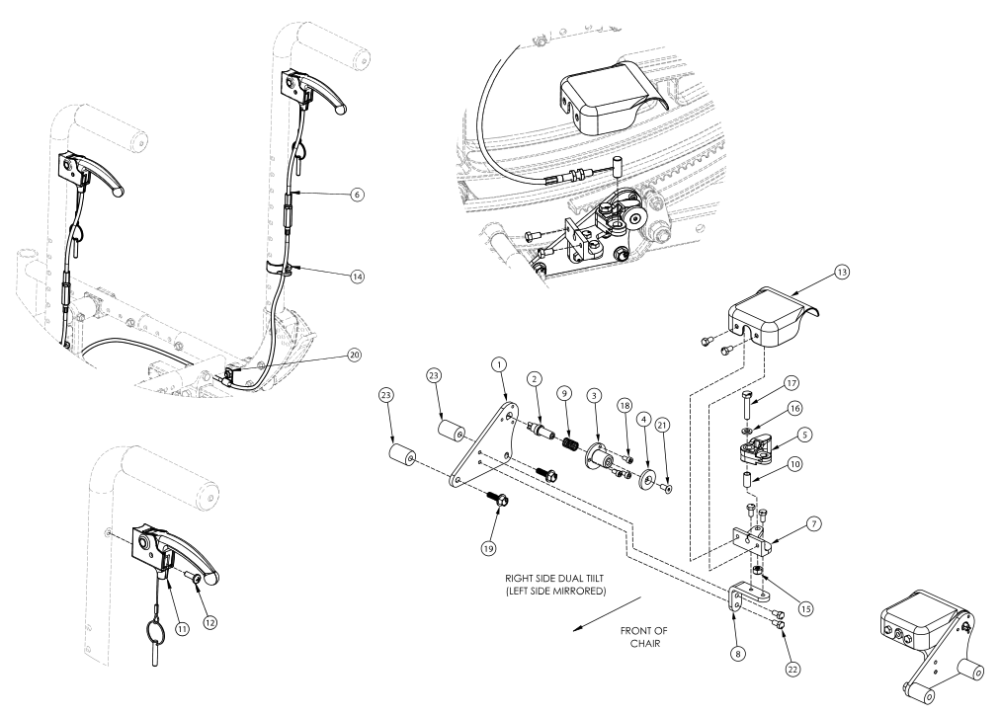

Part Picture
(Click on image to enlarge)
This Focus CR Hand Tilt is discontinued. This design was effective starting with serial numbers FCR0025162 and FCHD002316 to FCR0026598 and FCHD002332.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506274 | Dual Tilt Lock Mechanism Kit, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | $465.30 | EA | |
| 1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506275 | Dual Tilt Lock Mechanism Kit, Heavy Duty, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | $583.56 | EA | |
| 6a, 11, 12, 14, 20 | 506254 | Hand Tilt Cable/Trigger Kit with Short Cable, Stroller Handle/Recline, Focus- Used with Short Stroller Back Post | Used with Short Stroller Back Post | $143.41 | EA | |
| 6b, 11, 12, 14, 20 | 506255 | Hand Tilt Cable/Trigger Kit with Tall Cable, Stroller Handle/Recline, Focus- Used with Tall Stroller Back Post | Used with Tall Stroller Back Post | $144.36 | EA | |
| 1 | 004280 | Mount Plate, Tilt Lock | $15.21 | |||
| 2 | 004281 | Pin, Plunger, Tilt Lock | $64.75 | |||
| 3 | 004282 | Housing, Plunger, Tilt Lock | $11.04 | |||
| 4 | 004283 | Thrust Washer, Tilt Lock | $7.61 | EA | ||
| 5 | 004284 | Cam Lever, Drive, Tilt Lock | $33.97 | EA | ||
| 1 - 5, 7a, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506276 | Tilt Lock Mechanism Dual Hand, Right | $232.65 | EA | ||
| 1 - 5, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506277 | Tilt Lock Mechanism Dual Hand, Left | $232.65 | EA | ||
| 1 - 5, 7a, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506278 | Tilt Lock Mechanism Dual Hand, Heavy Duty Right | $291.78 | EA | ||
| 1 - 5, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506279 | Tilt Lock Mechanism Dual Hand, Heavy Duty Left | $291.78 | EA | ||
| 6a | 004300 | Cable, Tilt Short- Used with Short Stroller Back Post | Used with Short Stroller Back Post | $109.21 | EA | |
| 6b | 004301 | Cable, Tilt, Medium- Used with Tall Stroller Back Post | Used with Tall Stroller Back Post | $111.42 | EA | |
| 7a | 004287 | Linkage Mount, Right | $48.54 | EA | ||
| 7b | 004288 | Linkage Mount, Left | $48.54 | EA | ||
| 8 | 004289 | Bracket, Mount, Tilt Lock | $16.32 | EA | ||
| 9 | 004290 | Spring, Comp, .42OD x 1.0L x .038W | $1.10 | |||
| 10 | 004291 | Bushing, Pivot, Tilt Lock | $7.17 | |||
| 11, 12 | 110139 | Lever Assembly with Lanyard Vertical Tilt | $35.70 | EA | ||
| 12 | 100734 | M5 x 16 PHMS ZC | $1.66 | EA | ||
| 13 | 004298 | Cover, Tilt Lock | $13.68 | EA | ||
| 14 | 001117 | Cable Clip 1" | $4.02 | EA | ||
| 15 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 16 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 17 | 101824 | M6 x 30 HHCS Blk Zn | $2.21 | EA | ||
| 18 | 102800 | M4 x 8mm SHCS Blk Zn | $0.56 | EA | ||
| 19a | 103510 | M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity | Used with Standard Weight Capacity | $1.10 | ||
| 19b | 103511 | M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option | Used with Heavy Duty Option | $3.31 | ||
| 20 | 001239 | P-Clip 3/16" | $6.62 | EA | ||
| 21 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 | $1.10 | EA | ||
| 22 | 200427 | M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933 | $0.56 | EA | ||
| 23 | 001405 | Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option | Used with Heavy Duty Option | $27.35 |
