Focus Cr
Name: Focus CR: (discontinued 2) Focus Cr Hand Tilt Mechanism
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

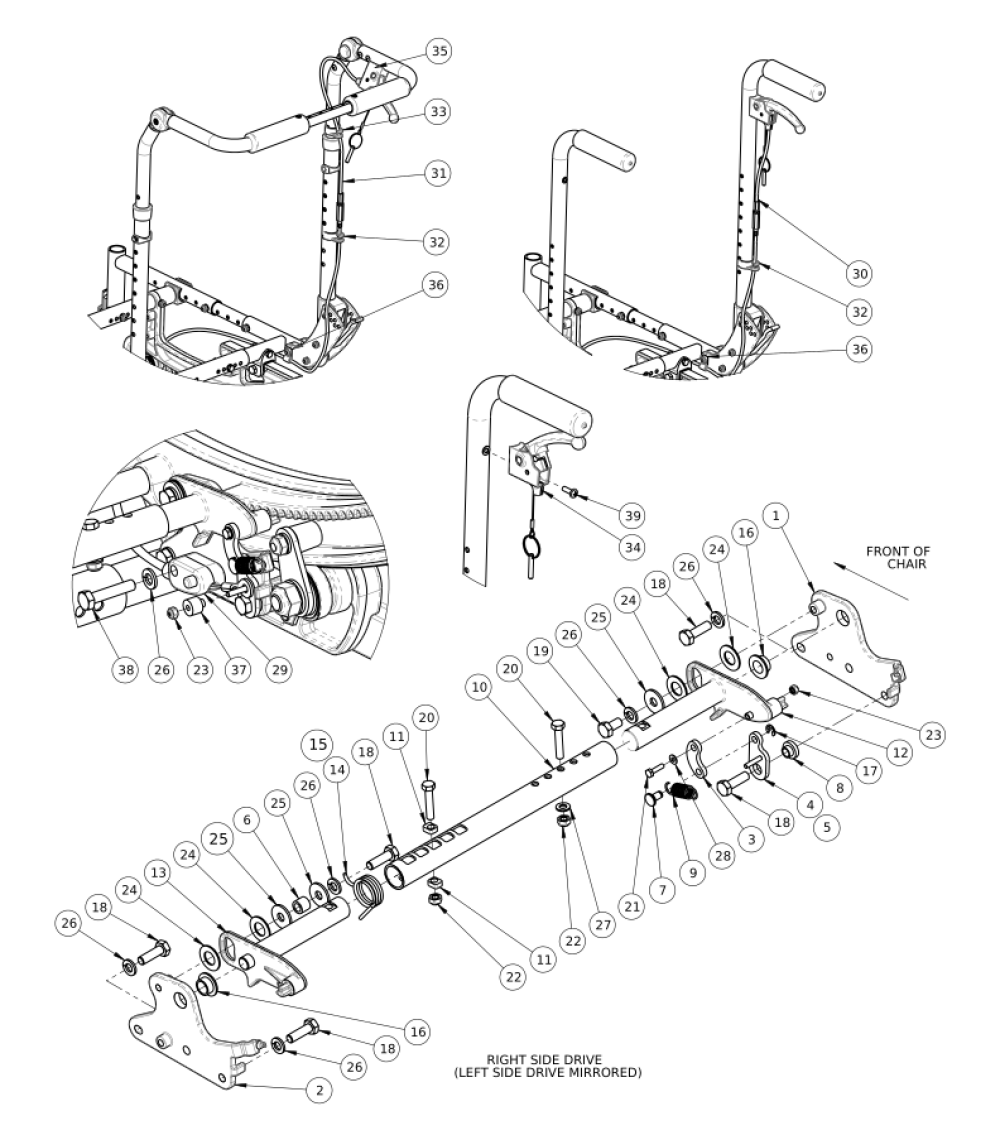

Part Picture
(Click on image to enlarge)
This Focus CR Hand Tilt is discontinued and was used on serial numbers from FCR0013026 to FCR0016745 or prior to FCHD002213.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 30a, 32, 34, 36, 39 | 503227 | Hand Tilt Cable/ Trigger Kit for Short Stroller Handle/ Reclining Back Focus | N/A | EA | Please Call | |
| 30b, 32, 34, 36, 39 | 503228 | Hand Tilt Cable/ Trigger Kit for Tall Stroller Handle/ Reclining Back Focus | N/A | EA | Please Call | |
| 23, 26, 29, 30a, 32, 34, 36 - 39 | 501156 | Partial Hand Tilt Kit for Short Stroller Handle/ Reclining Back Focus- This kit is used when changing from a Foot Tilt to Hand Tilt | This kit is used when changing from a Foot Tilt to Hand Tilt | N/A | EA | Please Call |
| 23, 26, 29, 30b, 32, 34, 36 - 39 | 501157 | Partial Hand Tilt Kit for Tall Stroller Handle/ Reclining Back Focus- This kit is used when changing from a Foot Tilt to Hand Tilt | This kit is used when changing from a Foot Tilt to Hand Tilt | N/A | EA | Please Call |
| 1, 16 | 502690 | Tilt Lock Mount Bracket w/ Bearing Kit, Right Focus | $20.23 | EA | ||
| 2, 16 | 502691 | Tilt Lock Mount Bracket w/ Bearing Kit, Left Focus | $20.23 | EA | ||
| 4 | 002084 | Toggle, Drive, Tilt, R | $11.84 | EA | ||
| 5 | 002085 | Toggle, Drive, Tilt, L | $21.47 | EA | ||
| 6 | 002086 | Spacer, .38ODx.24IDx.31LG | $2.54 | EA | ||
| 8 | 002088 | Bushing, Toggle, Lower, Tilt | N/A | EA | Please Call | |
| 9 | 002089 | Spring, Ext, 3/8ODx1.0LGx.041W | N/A | EA | Please Call | |
| 10a | 002094 | Growth Strut, Tilt Lock, Small | $35.30 | EA | ||
| 10b | 002095 | Growth Strut, Tilt Lock, Med | $37.51 | EA | ||
| 10c | 002096 | Growth Strut, Tilt Lock, Large | $39.71 | EA | ||
| 11 | 002097 | Insert, Drive, Tilt | $4.05 | |||
| 12 | 002411 | Cog Lever, Tilt Lock, R | N/A | EA | Please Call | |
| 13 | 002412 | Cog Lever, Tilt Lock, L | N/A | EA | Please Call | |
| 14 | 001109 | Spring Tilt Lock Right TILT- Used with left side assembly | Used with left side assembly | $4.95 | EA | |
| 15 | 001110 | Spring Tilt Lock Left TILT- Used with right side assembly | Used with right side assembly | $4.95 | EA | |
| 17 | 001137 | E-Clip 3/16" TILT | N/A | EA | Please Call | |
| 18 | 101823 | M6 x 20 HHCS Blk Zn | $1.10 | EA | ||
| 19 | 101822 | M6 x 12 HHCS BLKZC w/Patch | $1.10 | EA | ||
| 20 | 101821 | M5 x 25 HHCS Blk Zn | $1.10 | EA | ||
| 21 | 102783 | M3 x 12 HHCS, CL8.8, Blk Zn | $1.10 | EA | ||
| 22 | 100657 | M5 Nylock Nut Blk Zn | $0.56 | EA | ||
| 23 | 102784 | Nut, Nylock, M3, Blk | $1.10 | |||
| 24 | 102082 | Washer Nylon .406IDX.75ODX.040 | $0.59 | |||
| 25 | 101853 | M6 Washer Blk Zn | $0.56 | EA | ||
| 26 | 101835 | M6 Lock Washer Blk Zn | $0.56 | EA | ||
| 27 | 101856 | Flat Washer, M5, Blk Zn | $0.56 | EA | ||
| 28 | 102785 | Flat Washer, M3, Blk Zn | $0.56 | EA | ||
| 29 | 002091 | Mount, Cable, Tilt | N/A | EA | Please Call | |
| 30a | 002100 | Cable, Tilt, Short | $112.52 | EA | ||
| 30b | 002101 | Cable, Tilt, Med | $112.52 | EA | ||
| 31a | 002102 | Cable, Tilt, Long | $115.87 | EA | ||
| 31b | 002103 | Cable, Tilt, XL | $116.34 | EA | ||
| 32 | 001117 | Cable Clip 1" | $4.02 | EA | ||
| 33 | 001118 | Cable Clip 7/8" | $4.02 | EA | ||
| 34, 39 | 110139 | Lever Assembly with Lanyard Vertical Tilt | $35.70 | EA | ||
| 35 | 002801 | Lever Assembly Horizontal Tilt | $14.20 | EA | ||
| 36 | 001239 | P-Clip 3/16" | $6.62 | EA | ||
| 37 | 002090 | Drive Bushing, Tilt Lock | $2.79 | EA | ||
| 38 | 101824 | M6 x 30 HHCS Blk Zn | $2.21 | EA | ||
| 39 | 100734 | M5 x 16 PHMS ZC | $1.66 | EA |
