Focus CR Replacement Parts in Discontinued Tilt Mechanisms / (discontinued 1) Focus Cr Dual Hand Tilt Mechanism Fixed Height With Adjustable Handle Back by Ki Mobility

Loading...

Discontinued Tilt Mechanisms » (discontinued 1) Focus Cr Dual Hand Tilt Mechanism Fixed Height With Adjustable Handle Back

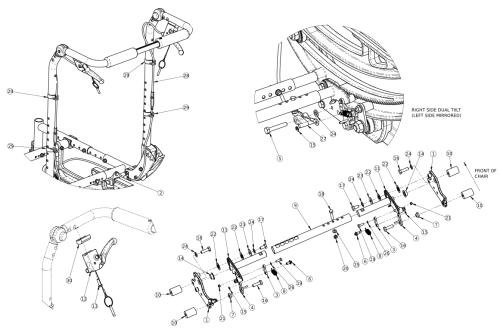

(discontinued 1) Focus Cr Dual Hand Tilt Mechanism Fixed Height With Adjustable Handle Back parts diagram
(Click on image to enlarge)

This Focus CR Hand Tilt is discontinued and was used on chairs with serial numbers prior to FCR0025162 and FCHD002316.
Pos.Part #DescriptionRemarksPriceBuy
1b, 14503764Tilt Lock Mount Bracket w/ Bearing Kit, Left, Focus, Dual Height Adjustable
$18.34
2001239P-Clip 3/16"
$6.00
3003247Link, Drive, Tilt
$12.25
4a002084Toggle, Drive, Tilt, R
$10.74
4b002085Toggle, Drive, Tilt, L
$19.47
5101824M6 x 30 HHCS Blk Zn
$2.00
6003364Pin, Toggle, Tilt
$6.90
7002088Bushing, Toggle, Lower, Tilt
$6.43
8002089Spring, Ext, 3/8ODx1.0LGx.041W
$3.21
9a002094Growth Strut, Tilt Lock, Small
$32.00
9b002095Growth Strut, Tilt Lock, Med
$34.00
9c002096Growth Strut, Tilt Lock, Large
$36.00
10003367Spacer, Tilt Lever
$17.94
11a002411Cog Lever, Tilt Lock, R
$36.73
11b002412Cog Lever, Tilt Lock, L
$36.73
12002801Lever Assembly Horizontal Tilt
$12.86
13100696M5 x 30mm PPH Capscrew
$1.50
15001137E-Clip 3/16" TILT
$0.50
16a101823M6 x 20 HHCS Blk Zn
$1.00
16b100674M6 x 45 CLS10.9 DIN931 HHCS ZCUsed with Heavy Duty option/spacer
$1.50
16c101826M6 x 50 HHCS Blk ZnUsed with Heavy Duty option/spacer
$2.00
17101822M6 x 12 HHCS BLKZC w/Patch
$1.00
18101821M5 x 25 HHCS Blk Zn
$1.00
19102783M3 x 12 HHCS, CL8.8, Blk Zn
$1.00
20100657M5 Nylock Nut Blk Zn
$0.50
21102784Nut, Nylock, M3, Blk
$1.00
22102082Washer Nylon .406IDX.75ODX.040
$0.53
23101853M6 Fender Washer Blk Zn
$0.50
24101835M6 Lock Washer Blk Zn
$0.50
25101856Flat Washer, M5, Blk Zn
$0.50
26102785Flat Washer, M3, Blk Zn
$0.50
27003387Cable Mount, Tilt
$3.50
28a002102Cable, Tilt, Long
$105.04
28b002103Cable, Tilt, XL
$105.47
29001117Cable Clip 1"
$3.64
30001405Spacer, .69OD x .24ID x .1.01LgOnly used with Heavy Duty Option
$24.80
2, 3, 4a, 4b, 5 - 8, 10, 12, 13, 15, 17, 19, 21, 24, 26, 27, 28a, 29503765Dual Tilt, Height Adjustable, Short, Retrofit Kit, FocusUse this kit if adding a second hand tilt lever assembly to existing single hand tilt assemblyN/APlease Call
2, 3, 4a, 4b, 5 - 8, 10, 12, 13, 15, 17, 19, 21, 24, 26, 27, 28b, 29503766Dual Tilt, Height Adjustable, Tall, Retrofit Kit, FocusUse this kit if adding a second hand tilt lever assembly to existing single hand tilt assemblyN/APlease Call
1a, 1b, 3, 4a, 4b, 5 - 8, 9a, 11a, 11b, 14, 15, 16a, 17 - 27503767Dual Hand Tilt Kit, Small Width Range, FocusFor complete tilt mechanism, select appropriate Hand Tilt Cable/ Trigger Kit as wellN/APlease Call
1a, 1b, 3, 4a, 4b, 5 - 8, 9b, 11a, 11b, 14, 15, 16a, 17 - 27503768Dual Hand Tilt Kit, Medium Width Range, FocusFor complete tilt mechanism, select appropriate Hand Tilt Cable/ Trigger Kit as wellN/APlease Call
1a, 1b, 3, 4a, 4b, 5 - 8, 9c, 11a, 11b, 14, 15, 16a, 17 - 27503769Dual Hand Tilt Kit, Large Width Range, FocusFor complete tilt mechanism, select appropriate Hand Tilt Cable/ Trigger Kit as wellN/APlease Call
2, 10, 12, 13, 28a, 29505241Dual Hand Tilt / Trigger Kit for Short Fixed Height Back with Adjustable Handle, FocusN/APlease Call
2, 10, 12, 13, 28b, 29505242Dual Hand Tilt / Trigger Kit for Tall Fixed Height Back with Adjustable Handle, FocusN/APlease Call
