loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Cr Transit
Manufacturer: Ki Mobility

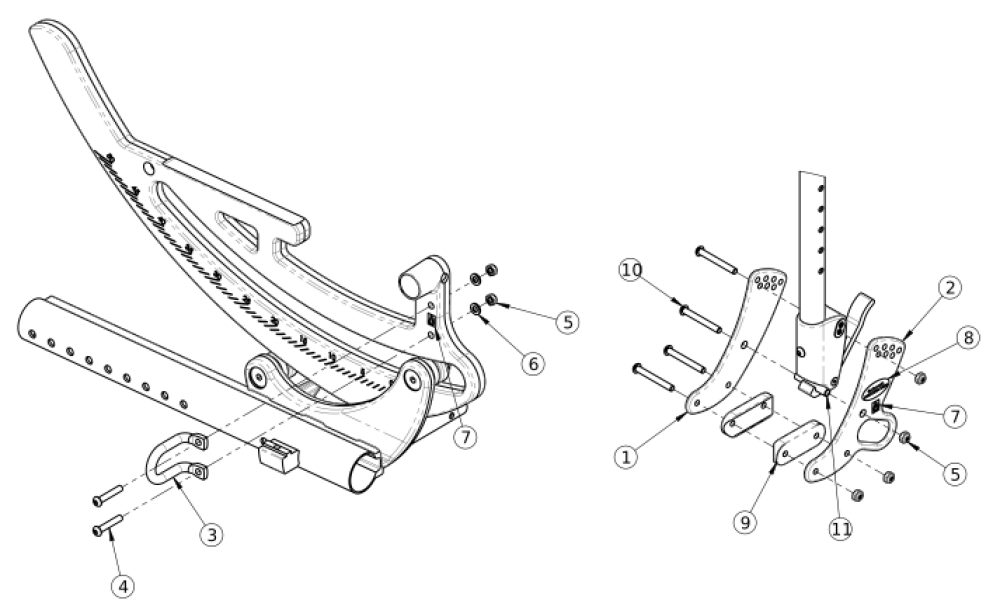

Focus Cr Transit parts diagram
(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered.
Attachments:
Pos. Part # Description Price UOM Buy
2a - 10 501096 Transit Retrofit Kit Focus- This kit is a complete retrofit, containing a pair of front transit brackets with attaching hardware and transit backplates.
$532.40
EA
2b - 9 503318 Transit Retrofit Kit Reclining Back Focus- This kit is a complete retrofit, containing a pair of front transit brackets with attaching hardware and transit backplates.
$556.14
EA
1, 2a, 5, 7 - 11 501095 Backrest Hardware Kit Transit Focus (PAIR)
$514.81
EA
3 - 7 115745 Rotary Frame Hardware Kit Transit Focus (PAIR)- This kit contains a pair of front transit brackets with attaching hardware
$110.38
EA
1 001071 Back Plate Std TILT
$96.79
2a 001421 Back Plate Transit Inner TILT
$139.83
EA
2b 001263 Back Plate, Recline, Transit Tilt- For full hardware used with the Reclining Backrest, please see the Focus CR Reclining Backrest page
$176.33
4 101811 M6 x 35 BHCS Blk Zn
$1.19
EA
5 100658 M6 Nylock Nut Blk Zn
$1.19
EA
6 100746 M6 Flat Washer Blk Zn
$1.81
EA
9 002594 Saddle, Dual, 1" OD X 1.75 SP
$3.50
10 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.81
EA
11 002738 Spacer .313 OD x .243 ID x 1.68 long
$4.48
EA
