Focus Cr
Name: Focus CR: (discontinued 4) Focus Cr Hand Tilt Mechanism Adjustable Height With Adjustable Handle Back
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

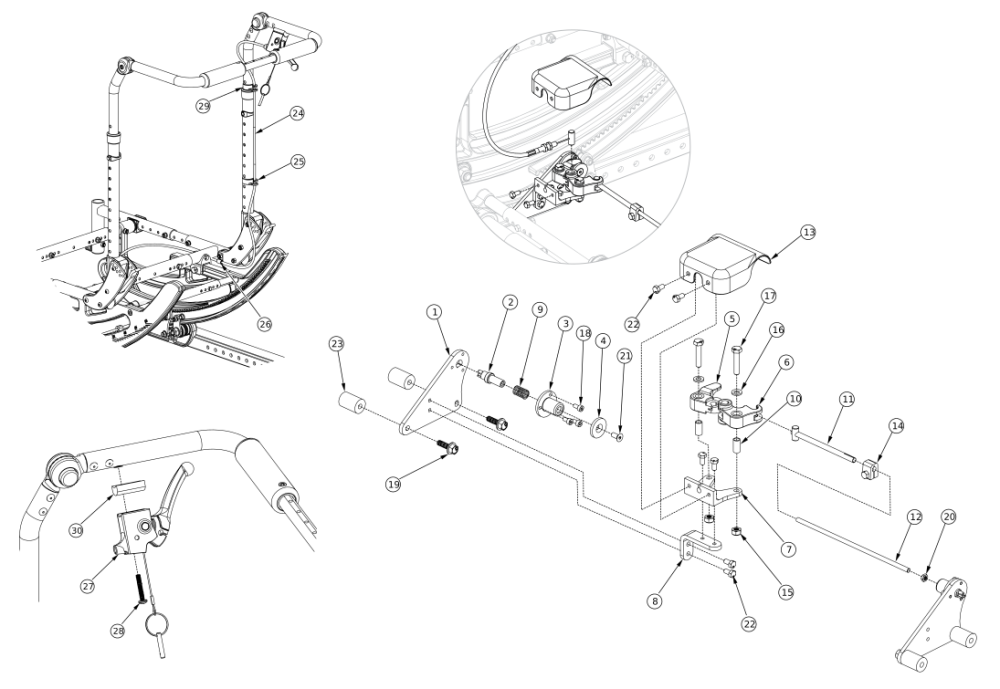

Part Picture
(Click on image to enlarge)
This Focus CR Hand Tilt is discontinued and was used on chairs starting with a March 5th, 2018 invoice date with serial numbers prior to FCR0026599 and FCHD002333.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 11, 12a, 13 - 18, 19a, 20 - 22 | 506246 | Single Tilt Hand/Foot Kit, Right, Small Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $214.76 | EA | |
| 1 - 11, 12b, 13 - 18, 19a, 20 - 22 | 506247 | Single Tilt Hand/Foot Kit, Right, Medium Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $237.56 | EA | |
| 1 - 11, 12c, 13 - 18, 19a, 20 - 22 | 506248 | Single Tilt Hand/Foot Kit, Right, Large Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $219.52 | EA | |
| 1 - 11, 12a, 13 - 18, 19a, 20 - 22 | 506266 | Single Tilt Hand/Foot Kit, Left, Small Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $214.76 | EA | |
| 1 - 11, 12b, 13 - 18, 19a, 20 - 22 | 506267 | Single Tilt Hand/Foot Kit, Left, Medium Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $237.56 | EA | |
| 1 - 11, 12c, 13 - 18, 19a, 20 - 22 | 506268 | Single Tilt Hand/Foot Kit, Left, Large Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $219.52 | EA | |
| 1 - 11, 12a, 13 - 18, 19b, 20 - 23 | 506249 | Single Tilt Hand/Foot Kit, Right, Small Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $332.69 | EA | |
| 1 - 11, 12b, 13 - 18, 19b, 20 - 23 | 506250 | Single Tilt Hand/Foot Kit, Right, Medium Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $332.69 | EA | |
| 1 - 11, 12c, 13 - 18, 19b, 20 - 23 | 506251 | Single Tilt Hand/Foot Kit, Right, Large Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $332.69 | EA | |
| 1 - 11, 12a, 13 - 18, 19b, 20 - 23 | 506269 | Single Tilt Hand/Foot Kit, Left, Small Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $332.69 | EA | |
| 1 - 11, 12b, 13 - 18, 19b, 20 - 23 | 506270 | Single Tilt Hand/Foot Kit, Left, Medium Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $332.69 | EA | |
| 1 - 11, 12c, 13 - 18, 19b, 20 - 23 | 506271 | Single Tilt Hand/Foot Kit, Left, Large Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $332.69 | EA | |
| 24a, 25 - 30 | 506252 | Hand Tilt Cable/Trigger Kit with Long Cable, Height Adjustable w/Adj Handle, Focus- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $165.89 | EA | |
| 24b, 25 - 30 | 506253 | Hand Tilt Cable/Trigger Kit with XL Cable, Height Adjustable w/Adj Handle, Focus- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $166.36 | EA | |
| 24c, 25 - 30 | 506256 | Hand Tilt Cable/Trigger Kit with XXL Cable, Height Adjustable w/Adj Handle, Focus- Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | $166.36 | EA | |
| 11, 12a, 14, 20 | 506263 | Linkage Rod Assembly, Tilt, Small- Used with Small Width Range | Used with Small Width Range | $40.15 | EA | |
| 11, 12b, 14, 20 | 506264 | Linkage Rod Assembly, Tilt, Medium- Used with Medium Width Range | Used with Medium Width Range | $40.37 | EA | |
| 11, 12c, 14, 20 | 506265 | Linkage Rod Assembly, Tilt, Large- Used with Large Width Range | Used with Large Width Range | $40.98 | EA | |
| 1 | 004280 | Mount Plate, Tilt Lock | $15.21 | |||
| 2 | 004281 | Pin, Plunger, Tilt Lock | $64.75 | |||
| 3 | 004282 | Housing, Plunger, Tilt Lock | $11.04 | |||
| 4 | 004283 | Thrust Washer, Tilt Lock | $7.61 | EA | ||
| 1 - 4, 9, 18, 19a | 506259 | Tilt Lock Mechanism Single Hand/Foot, Slave Right | $103.58 | EA | ||
| 1 - 4, 9, 18, 19a | 506260 | Tilt Lock Mechanism Single Hand/Foot, Slave Left | $103.58 | EA | ||
| 1 - 4, 9, 18, 19b, 23 | 506261 | Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Right | $162.72 | EA | ||
| 1 - 4, 9, 18, 19b, 23 | 506262 | Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Left | $162.72 | EA | ||
| 5 | 004284 | Cam Lever, Drive, Tilt Lock | $33.97 | EA | ||
| 6 | 004285 | Cam Lever, Slave, Tilt Lock | $33.97 | EA | ||
| 7 | 004286 | Mount, Linkage, Dual | $48.54 | EA | ||
| 8 | 004289 | Bracket, Mount, Tilt Lock | $16.32 | EA | ||
| 9 | 004290 | Spring, Comp, .42OD x 1.0L x .038W | $1.10 | |||
| 10 | 004291 | Bushing, Pivot, Tilt Lock | $7.17 | |||
| 11 | 004294 | Tube Assembly, Slave, Tilt Lock | $13.57 | EA | ||
| 12a | 004295 | Rod, Slave, Small, 4.96"- Used with Small Width Range | Used with Small Width Range | $8.39 | EA | |
| 12b | 004296 | Rod, Slave, Medium, 6.96"- Used with Medium Width Range | Used with Medium Width Range | $8.60 | EA | |
| 12c | 004297 | Rod, Slave, Large, 8.96"- Used with Large Width Range | Used with Large Width Range | $9.21 | EA | |
| 13 | 004298 | Cover, Tilt Lock | $13.68 | EA | ||
| 14 | 004308 | Shaft Clamp, 6mm x M5 | $17.65 | EA | ||
| 15 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 16 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 17 | 101824 | M6 x 30 HHCS Blk Zn | $2.21 | EA | ||
| 18 | 102800 | M4 x 8mm SHCS Blk Zn | $0.56 | EA | ||
| 19a | 103510 | M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity | Used with Standard Weight Capacity | $1.10 | ||
| 19b | 103511 | M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option | Used with Heavy Duty Option | $3.31 | ||
| 20 | 103514 | M5 x 0.8 Jam Nut BLK ZN DIN439B | $0.56 | EA | ||
| 21 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 | $1.10 | EA | ||
| 22 | 200427 | M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933 | $0.56 | EA | ||
| 23 | 001405 | Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option | Used with Heavy Duty Option | $27.35 | ||
| 24a | 004302 | Cable, Tilt, Long- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $113.62 | EA | |
| 24b | 004303 | Cable, Tilt, XL- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $115.83 | EA | |
| 24c | 004304 | Cable, Tilt, XXL- Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | $118.03 | EA | |
| 25 | 001117 | Cable Clip 1" | $4.02 | EA | ||
| 26 | 001239 | P-Clip 3/16" | $6.62 | EA | ||
| 27 | 002801 | Lever Assembly Horizontal Tilt | $14.20 | EA | ||
| 28 | 100696 | M5 x 30mm PPH Capscrew | $1.66 | EA | ||
| 29 | 001118 | Cable Clip 7/8" | $4.02 | EA | ||
| 30 | 003367 | Spacer, Tilt Lever | $18.85 | EA |
