loadingLoading...Focus CR

Focus Cr

Name: Focus CR: Focus Cr Vent And Battery Tray
Manufacturer: Ki Mobility

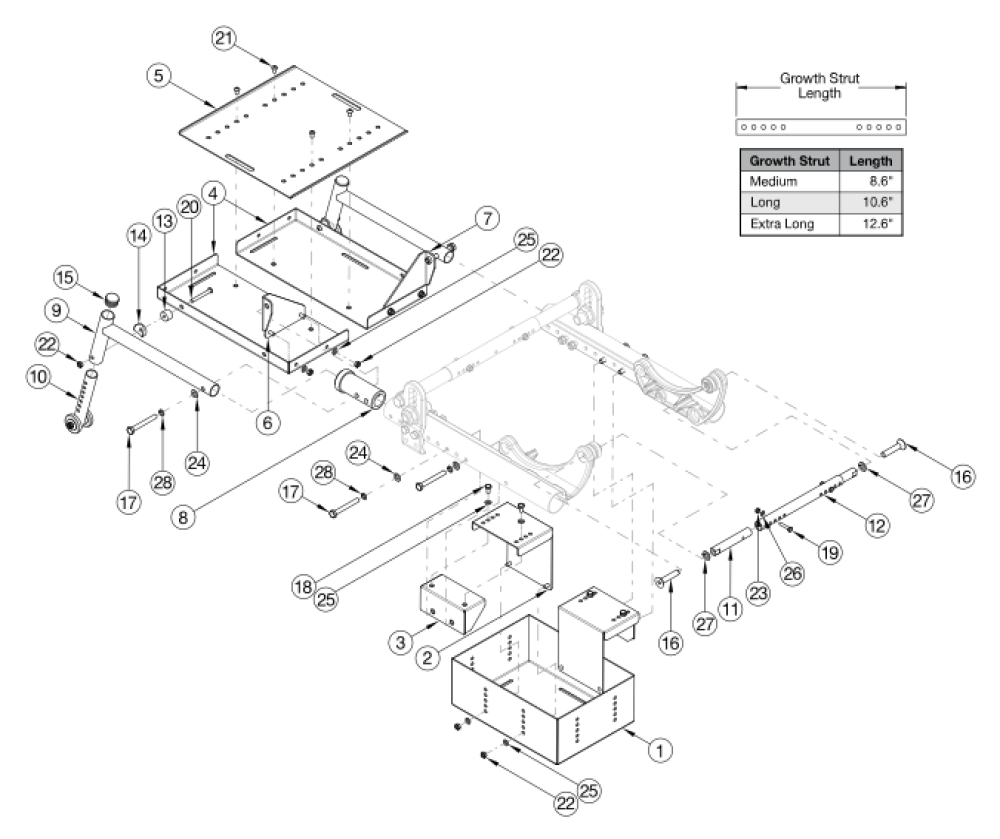

Focus Cr Vent And Battery Tray parts diagram
(Click on image to enlarge)

Vent and Battery Tray assemblies are based on Frame Width Range
Pos.Part #DescriptionPriceUOMBuy
8 - 10, 13 - 15, 17, 20, 22, 24506840Focus CR Vent Tray Anti-Tip- Includes parts for 1 side
$83.63
EA
1, 2, 3a, 4 - 11, 12a, 13 - 28116859Vent and Battery Tray Assm Short TILT- Used on 16" - 18" width with Small Frame Width Range
$676.82
EA
1, 2, 3a, 4 - 11, 12b, 13 - 28501436Vent and Battery Tray Assm Medium TILT
$645.52
EA
1, 2, 3a, 4 - 11, 12c, 13 - 28501437Vent and Battery Tray Assm Large TILT
$647.97
EA
1, 2, 3b, 4 - 11, 12d, 13 - 28114277Vent and Battery Tray Assm X-Large TILT
$650.60
EA
1, 2, 3a, 11, 12a, 17 - 19, 22 - 28116860Battery Tray Assm Short TILT- Used on 16" - 18" width with Small Frame Width Range
$333.82
EA
1 - 3a, 11, 12b, 17 - 19, 22 - 28501438Battery Tray Assm Medium TILT
$314.00
EA
1 - 3a, 11, 12c, 17 - 19, 22 - 28501439Battery Tray Assm Large TILT
$316.42
EA
1, 2, 3b, 11, 12d, 17 - 19, 22 - 28114278Battery Tray Assm X-Large TILT
$319.04
EA
4 - 10, 13 - 15, 17, 20 - 22, 24, 25, 28501440Vent Tray Assm TILT
$332.75
EA
1001285Battery Tray U1 TILT
$100.52
EA
2001286Battery Tray Hanger TILT
$23.65
3a001287Battery Tray Mount, Frame, TILT- Used on 16"-22" wide
$26.09
3b112006Battery Tray Mount Extended Range, Frame, TILT- Used on 23"-24" wide
$26.09
4001288Vent Tray TILT
$29.57
5001289Vent Tray Growth Plate TILT
$35.47
EA
6001290Vent Tray Hanger Right TILT
$29.57
EA
7001291Vent Tray Hanger Left TILT
$29.57
EA
8001292Vent Tray Mount Bushing TILT
$29.57
9001293Vent Tray Support TILT
$35.47
10001170Anti-Tip Lower Extension Assembly, Focus
$10.06
EA
11001300Strut End HD TILT
$29.57
12a001030Growth Strut Rotary Short TILT
$25.52
EA
12b001031Growth Strut Rotary Medium TILT
$27.96
EA
12c001032Growth Strut Rotary Long TILT
$30.37
EA
12d112004Growth Strut Rotary X-Long TILT
$33.01
EA
13102047Spacer, .25ID x .75OD x .50LG
$0.80
EA
14000055Saddle 1"
$1.71
EA
15100804Tube End Plug 1"
$1.71
EA
16101816M10 x 50 FHCS Blk Zn
$3.98
17101829M8 x 65 HHCS Blk Zn
$3.41
EA
18101822M6 x 12 HHCS BLKZC w/Patch
$1.13
EA
19101821M5 x 25 HHCS Blk Zn
$1.13
EA
20101781M6 x 50mm Partial Thread BHCS Blk ZC
$1.71
EA
21101184M6 x 10 BTN SHCS BLKZC w/Patch
$1.71
EA
22100658M6 Nylock Nut Blk Zn
$1.13
EA
23100657M5 Nylock Nut Blk Zn
$0.58
EA
24101858Washer Flat M8 Blk Zn
$0.58
EA
25100746M6 Flat Washer Blk Zn
$1.71
EA
26101856Flat Washer, M5, Blk Zn
$0.58
EA
27102337Lockwasher, M10, Blk Zn
$0.58
28101834M8 Hi-Collar Lockwasher Blk Zn
$0.58
