Focus CR Replacement Parts in Tilt Mechanism / Focus Cr Dual Hand Tilt Mechanism Reclining Back by Ki Mobility

Loading...

Tilt Mechanism » Focus Cr Dual Hand Tilt Mechanism Reclining Back

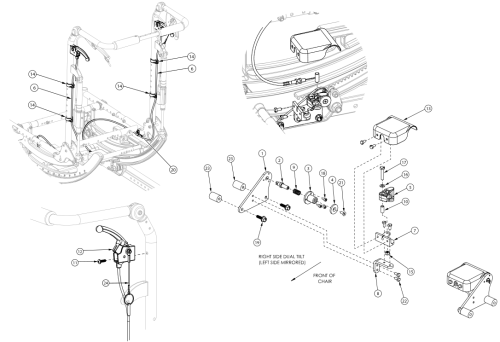

Focus Cr Dual Hand Tilt Mechanism Reclining Back parts diagram
(Click on image to enlarge)

This design effective starting with serial numbers FCR0026599 and FCHD002333.

If serial number is prior to FCR0026599 and FCHD002333 new back cane assemblies are required in addition to the hand tilt mechanism.

Pos.Part #DescriptionRemarksPriceBuy
1004280Mount Plate, Tilt Lock
$14.21
2004281Pin, Plunger, Tilt Lock
$60.46
3004282Housing, Plunger, Tilt Lock
$10.30
4004283Thrust Washer, Tilt Lock
$7.11
5004284Cam Lever, Drive, Tilt Lock
$31.72
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19a, 21, 22506276Tilt Lock Mechanism Dual Hand, Right
$217.23
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22506277Tilt Lock Mechanism Dual Hand, Left
$217.23
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19b, 21 - 23506278Tilt Lock Mechanism Dual Hand, Heavy Duty Right
$272.44
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23506279Tilt Lock Mechanism Dual Hand, Heavy Duty Left
$272.44
6a004301Cable, Tilt, MediumUsed with Short Recline Back Post
$104.03
6b004302Cable, Tilt, LongUsed with Tall Recline Back Post
$106.09
7a004287Linkage Mount, Right
$45.32
7b004288Linkage Mount, Left
$45.32
8004289Bracket, Mount, Tilt Lock
$15.24
9004290Spring, Comp, .42OD x 1.0L x .038W
$1.03
10004291Bushing, Pivot, Tilt Lock
$6.70
11100734M5 x 16 DIN7985 PHMS ZC
$1.55
12002800Lever Assembly Vertical Tilt
$13.25
13004298Cover, Tilt Lock
$12.77
14001117Cable Clip 1"
$3.75
15100658M6 Nylock Nut Blk Zn
$1.03
16100746M6 Flat Washer Blk Zn
$1.55
17101824M6 x 30 HHCS Blk Zn
$2.06
18102800M4 x 8mm SHCS Blk Zn DIN912
$0.52
19a103510M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921Used with Standard Weight Capacity
$1.03
19b103511M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921Used with Heavy Duty Option
$3.09
20001239P-Clip 3/16"
$6.18
21103522M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.03
22200427M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.52
23001405Spacer, .69OD x .24ID x .1.01LgUsed with Heavy Duty Option
$25.54
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22506274Dual Tilt Lock Mechanism Kit, FocusFor complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit
$434.45
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23506275Dual Tilt Lock Mechanism Kit, Heavy Duty, FocusFor complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit
$544.87
6a, 11, 12, 14, 20506791Hand Tilt Cable/Trigger Kit with Medium Cable, Recline, FocusUsed with Short Recline Back Post
$130.00
6b, 11, 12, 14, 20506792Hand Tilt Cable/Trigger Kit with Long Cable, Recline, FocusUsed with Tall Recline Back Post
$130.86
