Name: Focus CR: Focus Cr Foot Tilt Mechanism
Manufacturer: Ki Mobility

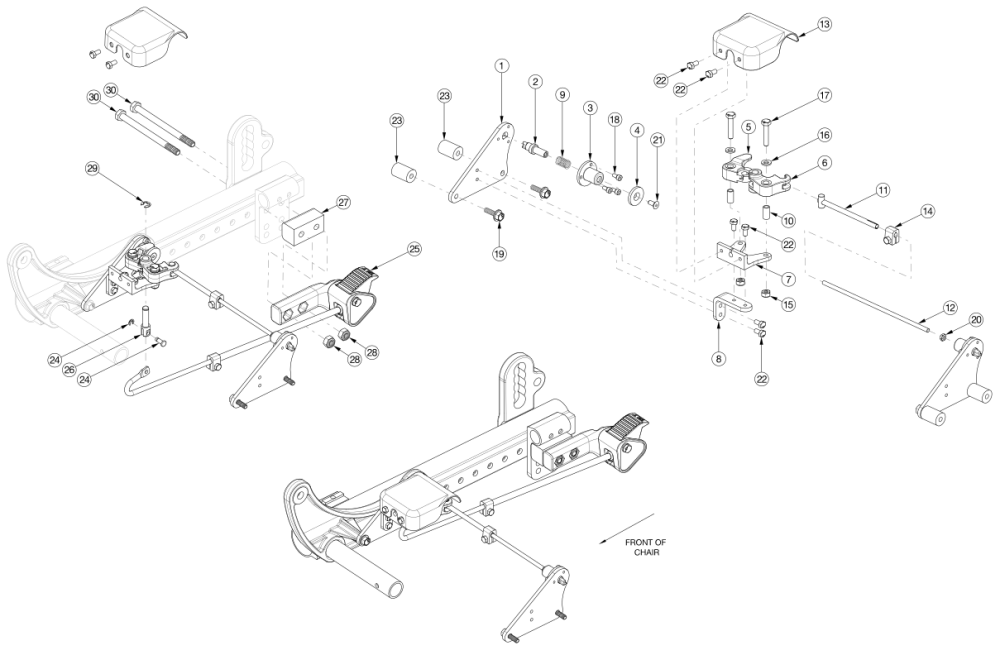

Focus Cr Foot Tilt Mechanism parts diagram
(Click on image to enlarge)

This design effective starting with serial numbers FCR0025162 and FCHD002316
Pos. Part # Description Price UOM Buy
1 - 11, 12a, 13 - 18, 19a, 20 - 22 506246 Single Tilt Hand/Foot Kit, Right, Small Width Range, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$228.94
EA
1 - 11, 12b, 13 - 18, 19a, 20 - 22 506247 Single Tilt Hand/Foot Kit, Right, Medium Width Range, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$253.25
EA
1 - 11, 12c, 13 - 18, 19a, 20 - 22 506248 Single Tilt Hand/Foot Kit, Right, Large Width Range, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$234.02
EA
1 - 11, 12a, 13 - 18, 19a, 20 - 22 506266 Single Tilt Hand/Foot Kit, Left, Small Width Range, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$228.94
EA
1 - 11, 12b, 13 - 18, 19a, 20 - 22 506267 Single Tilt Hand/Foot Kit, Left, Medium Width Range, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$253.25
EA
1 - 11, 12c, 13 - 18, 19a, 20 - 22 506268 Single Tilt Hand/Foot Kit, Left, Large Width Range, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$234.02
EA
1 - 11, 12a, 13 - 18, 19b, 20 - 23 506249 Single Tilt Hand/Foot Kit, Right, Small Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$354.66
EA
1 - 11, 12b, 13 - 18, 19b, 20 - 23 506250 Single Tilt Hand/Foot Kit, Right, Medium Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$354.66
EA
1 - 11, 12c, 13 - 18, 19b, 20 - 23 506251 Single Tilt Hand/Foot Kit, Right, Large Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$354.66
EA
1 - 11, 12d, 13 - 18, 19b, 20 - 23 114279 Single Tilt Hand/Foot Kit, Right, X-Large Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$355.34
EA
1 - 11, 12a, 13 - 18, 19b, 20 - 23 506269 Single Tilt Hand/Foot Kit, Left, Small Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$354.66
EA
1 - 11, 12b, 13 - 18, 19b, 20 - 23 506270 Single Tilt Hand/Foot Kit, Left, Medium Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$354.66
EA
1 - 11, 12c, 13 - 18, 19b, 20 - 23 506271 Single Tilt Hand/Foot Kit, Left, Large Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$354.66
EA
1 - 11, 12d, 13 - 18, 19b, 20 - 23 114280 Single Tilt Hand/Foot Kit, Left, X-Large Width Range, Heavy Duty, Focus- For complete Foot Tilt Mechanism, select appropriate Foot Tilt Pedal Kit in addition to this kit
$355.34
EA
24, 25a, 26, 27, 28, 29, 30a, 30b 506272 Foot Tilt Pedal Kit, Standard, Focus- Used with all backrests except Reclining Backrest
$99.56
EA
24, 25b, 26, 27, 28, 29, 30a, 30b 506273 Foot Tilt Pedal Kit, Long, Focus- Used with Reclining Backrest
$101.18
EA
11, 12a, 14, 20 506263 Linkage Rod Assembly, Tilt, Small- Used with Small Frame Width Range
$42.80
EA
11, 12b, 14, 20 506264 Linkage Rod Assembly, Tilt, Medium- Used with Medium Frame Width Range
$43.04
EA
11, 12c, 14, 20 506265 Linkage Rod Assembly, Tilt, Large- Used with Large Frame Width Range
$43.69
EA
11, 12d, 14, 20 114281 Linkage Rod Assembly, Tilt, X-Large- Used with X-Large Frame Width Range
$44.36
EA
1 004280 Mount Plate, Tilt Lock
$16.22
2 004281 Pin, Plunger, Tilt Lock
$69.02
3 004282 Housing, Plunger, Tilt Lock
$11.77
4 004283 Thrust Washer, Tilt Lock
$8.11
EA
1 - 4, 9, 18, 19a 506259 Tilt Lock Mechanism Single Hand/Foot, Slave Right
$110.42
EA
1 - 4, 9, 18, 19a 506260 Tilt Lock Mechanism Single Hand/Foot, Slave Left
$110.42
EA
1 - 4, 9, 18, 19b, 23 506261 Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Right
$173.47
EA
1 - 4, 9, 18, 19b, 23 506262 Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Left
$173.47
EA
5 004284 Cam Lever, Drive, Tilt Lock
$36.21
EA
6 004285 Cam Lever, Slave, Tilt Lock
$36.21
EA
7 004286 Mount, Linkage, Dual
$51.75
EA
8 004289 Bracket, Mount, Tilt Lock
$17.40
EA
9 004290 Spring, Comp, .42OD x 1.0L x .038W
$1.17
10 004291 Bushing, Pivot, Tilt Lock
$7.65
11 004294 Tube Assembly, Slave, Tilt Lock
$14.47
EA
12a 004295 Rod, Slave, Small, 4.96"- Used with Small Frame Width Range
$8.94
EA
12b 004296 Rod, Slave, Medium, 6.96"- Used with Medium Frame Width Range
$9.17
EA
12c 004297 Rod, Slave, Large, 8.96"- Used with Large Frame Width Range
$9.82
EA
12d 112564 Rod, Slave, X-Large, 10.96"- Used with X-Large Frame Width Range
$10.49
EA
13 004298 Cover, Tilt Lock
$14.58
EA
14 004308 Shaft Clamp, 6mm x M5
$18.82
EA
15 100658 M6 Nylock Nut Blk Zn
$1.17
EA
16 100746 M6 Flat Washer Blk Zn
$1.77
EA
17 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
18 102800 M4 x 8mm SHCS Blk Zn
$0.60
EA
19a 103510 M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity
$1.17
19b 103511 M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option
$3.53
20 103514 M5 x 0.8 Jam Nut BLK ZN DIN439B
$0.60
EA
21 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
22 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
23 001405 Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option
$29.16
24 001135 Clevis Pin with Clip TILT
$11.77
EA
25a 004080 Pedal Assembly Foot Tilt- Used with all backrests except Reclining Backrest
$90.56
EA
25b 004081 Pedal Assembly Long Foot Tilt- Used with Reclining Backrest or in Axle Plate Position 7 or 8
$92.90
EA
26 004278 Linkage Pin, Foot Tilt
$14.12
EA
27 004279 Pedal Spacer, Foot Tilt
$10.59
EA
28 100659 M8 Nylock Nut Blk Zn
$1.17
EA
29 102335 E-Ring 5/16" SS
$1.17
EA
30a 103512 M8 x 1.25 x 110 HHCS CLS10.9 Blk Zn DIN931- Used in all configurations, except if Attendant Foot Lock is present
$4.70
30b 103513 M8 x 120 HHCS Blk Zn- Used if Attendant Foot Lock is present
$4.70
