Focus Cr
Name: Focus CR: Focus Cr Dual Hand Tilt Mechanism Fixed Height With Adjustable Handle Back
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

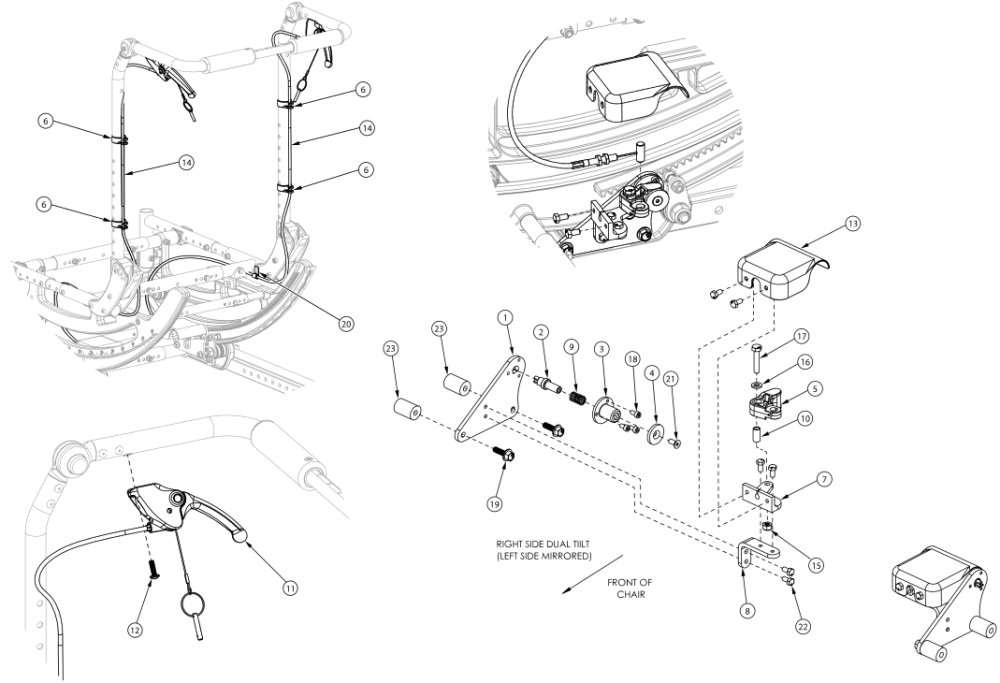

Part Picture
(Click on image to enlarge)
This design effective starting with serial numbers FCR0026599 and FCHD002333.
If serial number is prior to FCR0026599 and FCHD002333 new back cane assemblies are required in addition to the hand tilt mechanism.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506274 | Dual Tilt Lock Mechanism Kit, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | $465.30 | EA | |
| 1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506275 | Dual Tilt Lock Mechanism Kit, Heavy Duty, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | $583.56 | EA | |
| 6, 11, 12, 14a, 20 | 506786 | Hand Tilt Cable/Trigger Kit with XL Cable, Fixed Height w/Adjustable Handle, Focus- Used with Short Fixed Height with Adjustable Handle | Used with Short Fixed Height with Adjustable Handle | $172.56 | EA | |
| 6, 11, 12, 14b, 20 | 506787 | Hand Tilt Cable/Trigger Kit with XXL Cable, Fixed Height w/Adjustable Handle, Focus- Used with Tall Fixed Height with Adjustable Handle | Used with Tall Fixed Height with Adjustable Handle | $173.02 | EA | |
| 1 | 004280 | Mount Plate, Tilt Lock | $15.21 | |||
| 2 | 004281 | Pin, Plunger, Tilt Lock | $64.75 | |||
| 3 | 004282 | Housing, Plunger, Tilt Lock | $11.04 | |||
| 4 | 004283 | Thrust Washer, Tilt Lock | $7.61 | EA | ||
| 5 | 004284 | Cam Lever, Drive, Tilt Lock | $33.97 | EA | ||
| 1 - 5, 7a, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506276 | Tilt Lock Mechanism Dual Hand, Right | $232.65 | EA | ||
| 1 - 5, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506277 | Tilt Lock Mechanism Dual Hand, Left | $232.65 | EA | ||
| 1 - 5, 7a, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506278 | Tilt Lock Mechanism Dual Hand, Heavy Duty Right | $291.78 | EA | ||
| 1 - 5, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506279 | Tilt Lock Mechanism Dual Hand, Heavy Duty Left | $291.78 | EA | ||
| 6 | 001117 | Cable Clip 1" | $4.02 | EA | ||
| 7a | 004287 | Linkage Mount, Right | $48.54 | EA | ||
| 7b | 004288 | Linkage Mount, Left | $48.54 | EA | ||
| 8 | 004289 | Bracket, Mount, Tilt Lock | $16.32 | EA | ||
| 9 | 004290 | Spring, Comp, .42OD x 1.0L x .038W | $1.10 | |||
| 10 | 004291 | Bushing, Pivot, Tilt Lock | $7.17 | |||
| 11 | 003492 | Lever Assembly, Straight | $26.20 | EA | ||
| 12 | 100734 | M5 x 16 PHMS ZC | $1.66 | EA | ||
| 13 | 004298 | Cover, Tilt Lock | $13.68 | EA | ||
| 14a | 004303 | Cable, Tilt, XL- Used with Short Fixed Height with Adjustable Handle | Used with Short Fixed Height with Adjustable Handle | $115.83 | EA | |
| 14b | 004304 | Cable, Tilt, XXL- Used with Tall Fixed Height with Adjustable Handle | Used with Tall Fixed Height with Adjustable Handle | $118.03 | EA | |
| 15 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 16 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 17 | 101824 | M6 x 30 HHCS Blk Zn | $2.21 | EA | ||
| 18 | 102800 | M4 x 8mm SHCS Blk Zn | $0.56 | EA | ||
| 19a | 103510 | M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity | Used with Standard Weight Capacity | $1.10 | ||
| 19b | 103511 | M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option | Used with Heavy Duty Option | $3.31 | ||
| 20 | 001239 | P-Clip 3/16" | $6.62 | EA | ||
| 21 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 | $1.10 | EA | ||
| 22 | 200427 | M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933 | $0.56 | EA | ||
| 23 | 001405 | Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option | Used with Heavy Duty Option | $27.35 |
