Focus CR Replacement Parts in Discontinued Tilt Mechanisms / (discontinued 1) Focus Cr Hand Tilt by Ki Mobility

Loading...

Discontinued Tilt Mechanisms » (discontinued 1) Focus Cr Hand Tilt

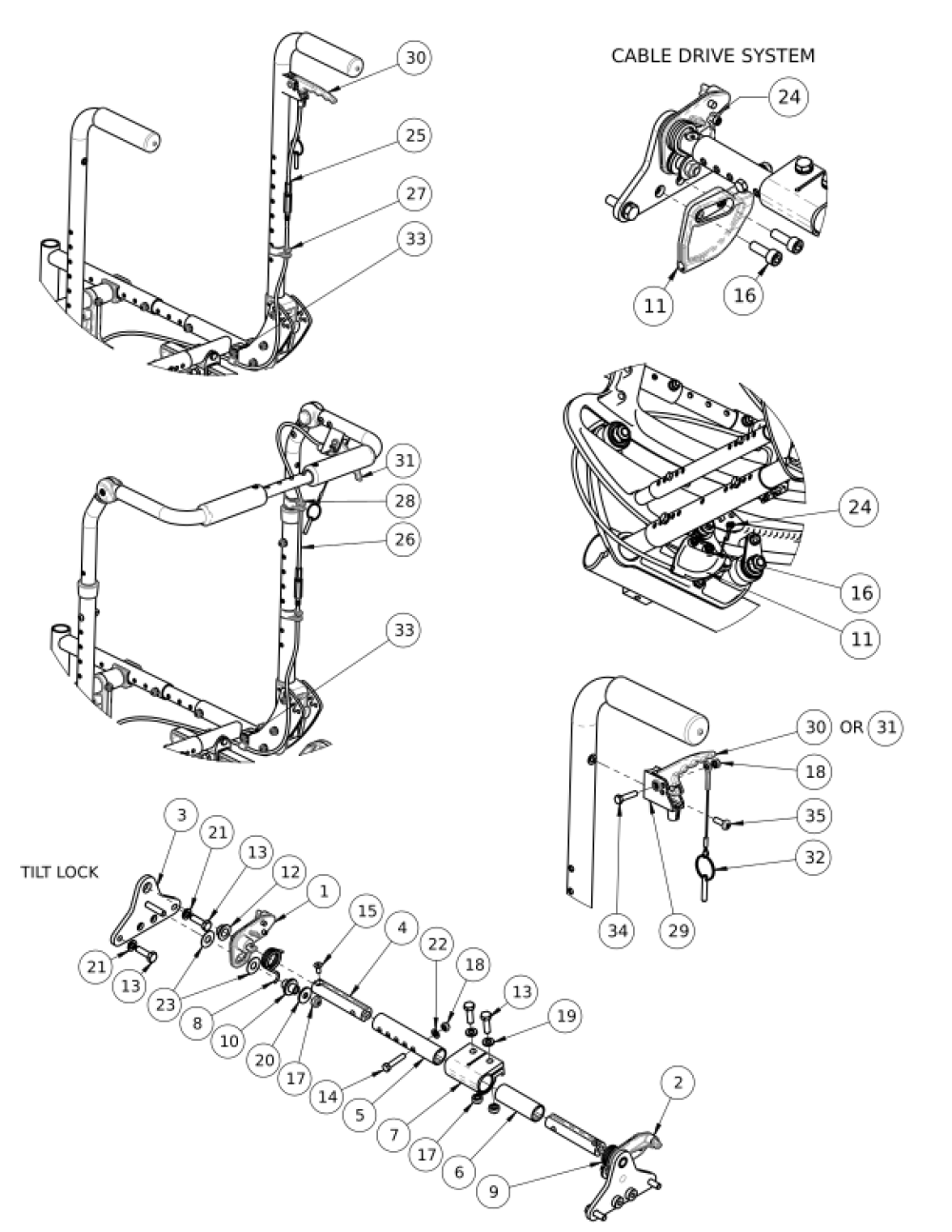

(discontinued 1) Focus Cr Hand Tilt parts diagram
(Click on image to enlarge)

This Focus CR Hand Tilt is discontinued and was used on serial numbers prior to FCR0013026.
Pos.Part #DescriptionRemarksPriceBuy
1001102Cog Lever Tilt Lock Right TILTN/APlease Call
2001103Cog Lever Tilt Lock Left TILTN/APlease Call
3001101Mounting Bracket Tilt Lock TILTN/APlease Call
4001105Strut End Tilt Lock TILTN/APlease Call
5001282Drive Tube TILTN/APlease Call
6a001254Growth Strut Short TILTN/APlease Call
6b001255Growth Strut Medium TILTN/APlease Call
6c001256Growth Strut Long TILTN/APlease Call
7001281Strut Clamp TILTN/APlease Call
8001109Spring Tilt Lock Right TILT
$4.49
9001110Spring Tilt Lock Left TILT
$4.49
10001104Retainer Lock Lever TILTN/APlease Call
11001112Mount Cable 90 Deg TILTN/APlease Call
12001111Bearing GFI-0607-04 TILTN/APlease Call
13101823M6 x 20 HHCS Blk Zn
$1.00
14101821M5 x 25 HHCS Blk Zn
$1.00
15101818M4 x 10 FHCS BLKZC w/Patch
$1.00
16101844M6 x 18 SHCS Blk Zn
$1.00
17100658M6 Nylock Nut Blk Zn
$1.00
18100657M5 Nylock Nut Blk Zn
$0.50
19100746M6 Flat Washer Blk Zn
$1.50
20101853M6 Fender Washer Blk Zn
$0.50
21101835M6 Lock Washer Blk Zn
$0.50
22101856Flat Washer, M5, Blk Zn
$0.50
23102082Washer Nylon .406IDX.75ODX.040
$0.53
24101842M3 x 8 SHCS Blk Zn
$1.00
25a001113Cable Tilt Short TILT
$95.76
25b001114Cable Tilt Medium TILT
$95.76
26a001115Cable Tilt Long TILT
$118.65
26b001116Cable Tilt Extra Long TILT
$118.65
27001117Cable Clip 1"
$3.64
28001118Cable Clip 7/8"
$3.64
29001121Trigger MountN/APlease Call
33001239P-Clip 3/16"
$6.00
34101820M5 x 22 HHCS Blk Zn
$5.50
35100734M5 x 16 DIN7985 PHMS ZC
$1.50
