Focus Cr
Name: Focus CR: Focus Cr Seat Pan
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

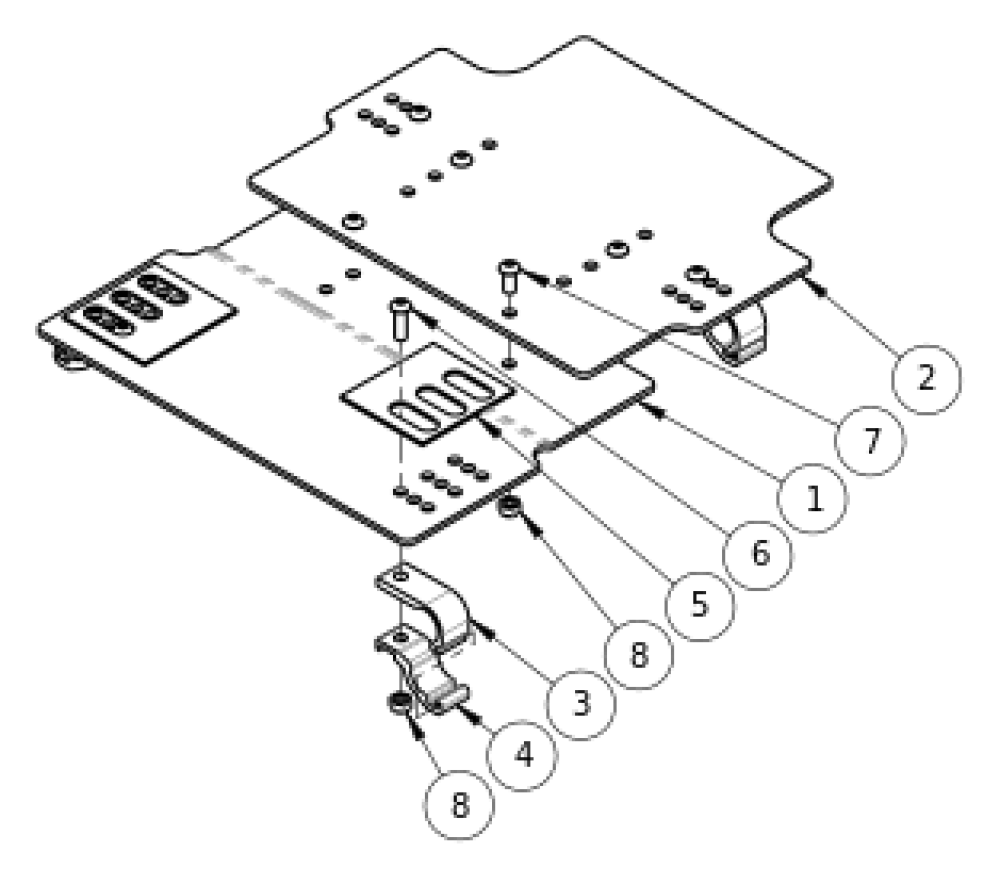

Part Picture
(Click on image to enlarge)
Grows two inches in width from even widths and one inch from odd widths. Max width is 24".
Depth growth is matched to frame depth range and can be adjusted to any depth in the range.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2a, 3 - 8 | 501144 | Seat Pan Assm Short 14-16" Wide Focus | $430.56 | EA | ||
| 1b, 2b, 3 - 8 | 501145 | Seat Pan Assm Short 16-18" Wide Focus | $430.56 | EA | ||
| 1c, 2c, 3 - 8 | 501146 | Seat Pan Assm Short 18-20" Wide Focus | $430.56 | EA | ||
| 1d, 2d, 3 - 8 | 501147 | Seat Pan Assm Short 20-22" Wide Focus | $430.56 | EA | ||
| 1e, 2e, 3 - 8 | 501218 | Seat Pan Assm Short 22" Wide Focus | $727.29 | EA | ||
| 1f, 2a, 3 - 8 | 501148 | Seat Pan Assm Medium 14-16" Wide Focus | $430.56 | EA | ||
| 1g, 2b, 3 - 8 | 501149 | Seat Pan Assm Medium 16-18" Wide Focus | $430.56 | EA | ||
| 1h, 2c, 3 - 8 | 501150 | Seat Pan Assm Medium 18-20" Wide Focus | $430.56 | EA | ||
| 1i, 2d, 3 - 8 | 501151 | Seat Pan Assm Medium 20-22" Wide Focus | $430.56 | EA | ||
| 1j, 2e, 3 - 8 | 501219 | Seat Pan Assm Medium 22" Wide Focus | $727.29 | EA | ||
| 1k, 2a, 3 - 8 | 501152 | Seat Pan Assm Long 14-16" Wide Focus | $430.56 | EA | ||
| 1l, 2b, 3 - 8 | 501153 | Seat Pan Assm Long 16-18" Wide Focus | $430.56 | EA | ||
| 1m, 2c, 3 - 8 | 501154 | Seat Pan Assm Long 18-20" Wide Focus | $430.56 | EA | ||
| 1n, 2d, 3 - 8 | 501155 | Seat Pan Assm Long 20-22" Wide Focus | $430.56 | EA | ||
| 1o, 2e, 3 - 8 | 501220 | Seat Pan Assm Long 22-24" Wide Focus | $727.29 | EA | ||
| 1a | 001184 | Seat Pan Front Short 14-16" Wide TILT | $204.95 | EA | ||
| 1b | 001185 | Seat Pan Front Short 16-18" Wide TILT | $204.95 | EA | ||
| 1c | 001186 | Seat Pan Front Short 18-20" Wide TILT | $204.95 | EA | ||
| 1d | 001187 | Seat Pan Front Short 20-22" Wide TILT | $204.95 | EA | ||
| 1e | 001188 | Seat Pan Front Short 22" Wide TILT | $204.95 | EA | ||
| 1f | 001189 | Seat Pan Front Medium 14-16" Wide TILT | $204.95 | EA | ||
| 1g | 001190 | Seat Pan Front Medium 16-18" Wide TILT | $204.95 | EA | ||
| 1h | 001191 | Seat Pan Front Medium 18-20" Wide TILT | $204.95 | EA | ||
| 1i | 001192 | Seat Pan Front Medium 20-22" Wide TILT | $204.95 | EA | ||
| 1j | 001193 | Seat Pan Front Medium 22" Wide TILT | $204.95 | EA | ||
| 1k | 001194 | Seat Pan Front Long 14-16" Wide TILT | $204.95 | EA | ||
| 1l | 001195 | Seat Pan Front Long 16-18" Wide TILT | $204.95 | EA | ||
| 1m | 001196 | Seat Pan Front Long 18-20" Wide TILT | $204.95 | EA | ||
| 1n | 001197 | Seat Pan Front Long 20-22" Wide TILT | $204.95 | EA | ||
| 1o | 001198 | Seat Pan Front Long 22-24" Wide TILT | $204.95 | EA | ||
| 2a | 001199 | Seat Pan Rear 14-16" Wide TILT | $204.95 | EA | ||
| 2b | 001200 | Seat Pan Rear 16-18" Wide TILT | $204.95 | EA | ||
| 2c | 001201 | Seat Pan Rear 18-20" Wide TILT | $204.95 | EA | ||
| 2d | 001202 | Seat Pan Rear 20-22" Wide TILT | $204.95 | EA | ||
| 2e | 001203 | Seat Pan Rear 22-24" Wide TILT | $204.95 | EA | ||
| 3 | 001204 | Seat Pan/Base Bracket TILT | $36.60 | |||
| 4 | 001205 | Seat Pan/Base Clamp TILT | $37.80 | |||
| 5 | 001206 | AB Tape 3x3 Die Cut Tilt | $2.65 | |||
| 6 | 101814 | M8 x 25 BHCS Blk Zn | $1.10 | EA | ||
| 7 | 101813 | M8 x 18 BHCS Blk Zn | $2.21 | |||
| 8 | 100659 | M8 Nylock Nut Blk Zn | $1.10 | EA |
