Focus Cr
Name: Focus CR: Focus Cr Height Adjustable Low T-arm
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

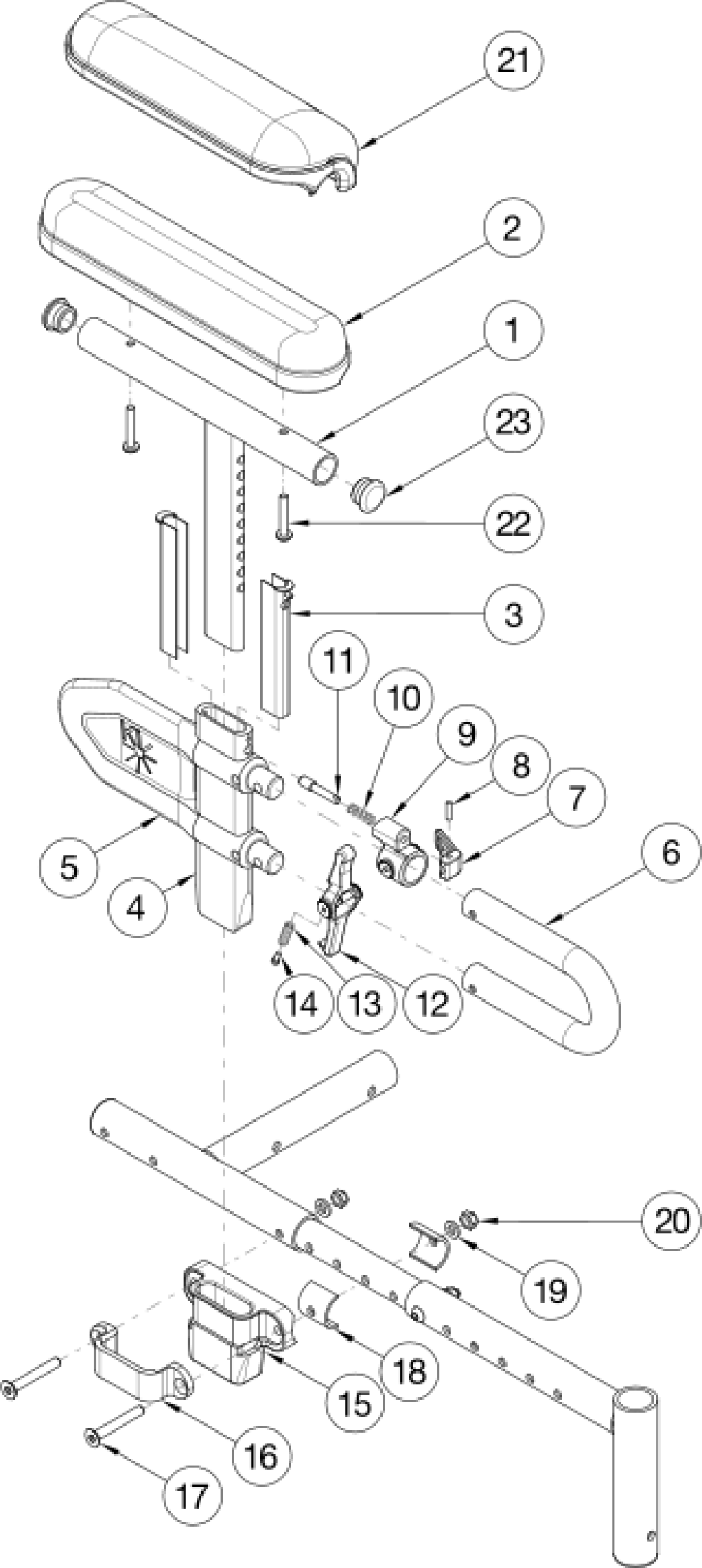

Part Picture
(Click on image to enlarge)
If retrofitting, Receivers are needed.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2b, 3 - 19, 22a | 121213 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and Receiver PAIR Focus |
$502.74
|
EA |
|
|
| 1a, 2b, 3 - 19, 22a | 121207 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and Receiver Focus |
$251.37
|
EA |
|
|
| 1b, 2a, 3 - 19, 22a | 113453 | Height Adj T-Arm Assm Low, Full w/ Std Pad and Receiver PAIR Focus |
$502.74
|
EA |
|
|
| 1b, 2a, 3 - 19, 22a | 113349 | Height Adj T-Arm Assm Low, Full w/ Std Pad and Receiver Focus |
$251.37
|
EA |
|
|
| 1a, 3 - 19, 21b, 22b | 121215 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and Receiver PAIR Focus |
$523.65
|
EA |
|
|
| 1a, 3 - 19, 21b, 22b | 121208 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and Receiver Focus |
$261.82
|
EA |
|
|
| 1a, 3 - 19, 21a, 22b | 113455 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and Receiver PAIR Focus |
$523.65
|
EA |
|
|
| 1a, 3 - 19, 21a, 22b | 113353 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and Receiver Focus |
$261.82
|
EA |
|
|
| 1a, 2b, 3 - 14, 22a, 23 | 121241 | Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad |
$183.61
|
EA |
|
|
| 1b, 2a, 3 - 14, 22a, 23 | 503169 | Height Adjustable T-Arm Assembly Low Full w/ Std Pad |
$183.61
|
EA |
|
|
| 1a, 3 - 14, 21b, 22b, 23 | 121243 | Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad |
$194.06
|
EA |
|
|
| 1b, 3 - 14, 21a, 22b, 23 | 503185 | Height Adjustable T-Arm Assembly Low Full w/ Waterfall Pad |
$194.06
|
EA |
|
|
| 1a, 3 - 14, 23 | 114488 | Height Adjustable T-Arm, Desk, Low- Replaced 002681 / 002682 | Replaced 002681 / 002682 |
$153.00
|
EA |
|
| 1b, 3 - 14, 23 | 002683 | Arm T Height Adjustable Low, Full Right Assembly | N/A | EA | Please Call | |
| 1b, 3 - 14, 23 | 114489 | Height Adjustable T-Arm, Full, Low- Replaced 002683 / 002684 | Replaced 002683 / 002684 |
$153.00
|
EA |
|
| 15 - 20 | 501730 | Height Adj T-Arm Receiver Assm 1" CAT |
$63.55
|
EA |
|
|
| 7 - 11 | 500541 | Arm Height Adjustable T Upper Lever Assembly |
$46.32
|
EA |
|
|
| 1a, 23 | 002648 | Post Weldment, T-Arm, Low, Desk |
$76.58
|
EA |
|
|
| 1b, 23 | 002649 | Post Weldment, T-Arm, Low, Full |
$79.18
|
EA |
|
|
| 2a | 100500 | Arm Pad Full |
$26.98
|
EA |
|
|
| 2b | 100501 | Arm Pad Desk |
$26.98
|
EA |
|
|
| 3 | 000090 | Height Adjustable T Armrest Shim |
$2.92
|
|
||
| 4 | 002105 | Tube, Outer, T-Arm, Low |
$33.81
|
EA |
|
|
| 5 | 002107 | Sideguard, T-Arm, Low | N/A | EA | Please Call | |
| 6 | 002104 | Transfer Tube, T-Arm, Low |
$19.20
|
EA |
|
|
| 7 | 000098 | Height Adjustable Armrest Lever | N/A | EA | Please Call | |
| 8 | 200257 | Dowel Pin 1/8 x 1/2 |
$3.00
|
EA |
|
|
| 9 | 000134 | Height Adjustable Armrest Lever Spring |
$1.28
|
EA |
|
|
| 10 | 000099 | Height Adjustable Armrest Lever Pin |
$21.84
|
EA |
|
|
| 11 | 000096 | Height Adjustable T Armrest Pin Lock Housing |
$16.80
|
EA |
|
|
| 12 | 002106 | Lever, T-Arm, Low |
$3.96
|
EA |
|
|
| 13 | 000135 | Height Adjustable T Armrest Release Lever Spring |
$1.23
|
EA |
|
|
| 14 | 000152 | Height Adjustable T Armrest Release Spring Button |
$1.23
|
EA |
|
|
| 15 | 000087 | Height Adjustable T-Arm Receiver 1" |
$17.41
|
EA |
|
|
| 16 | 000088 | Height Adjustable T Armrest Bracket |
$31.30
|
EA |
|
|
| 17 | 100866 | M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch |
$3.00
|
|
||
| 22a | 100696 | M5 x 30mm PPH Capscrew- Used with Standard Arm Pads | Used with Standard Arm Pads |
$1.81
|
EA |
|
| 22b | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads | Used with Waterfall Arm Pads |
$1.81
|
|
|
| 23 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
|
| 18 | 114443 | Tube Spacer, Black, 1" OD x .083" x .80 LG |
$3.86
|
EA |
|
|
| 19 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 20 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 21 | 102452 | Waterfall Arm Pad Full |
$37.44
|
EA |
|
|
| 21 | 102521 | Waterfall Arm Pad Desk |
$37.44
|
EA |
|
