loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Cr Combination Attendant Foot Lock
Manufacturer: Ki Mobility

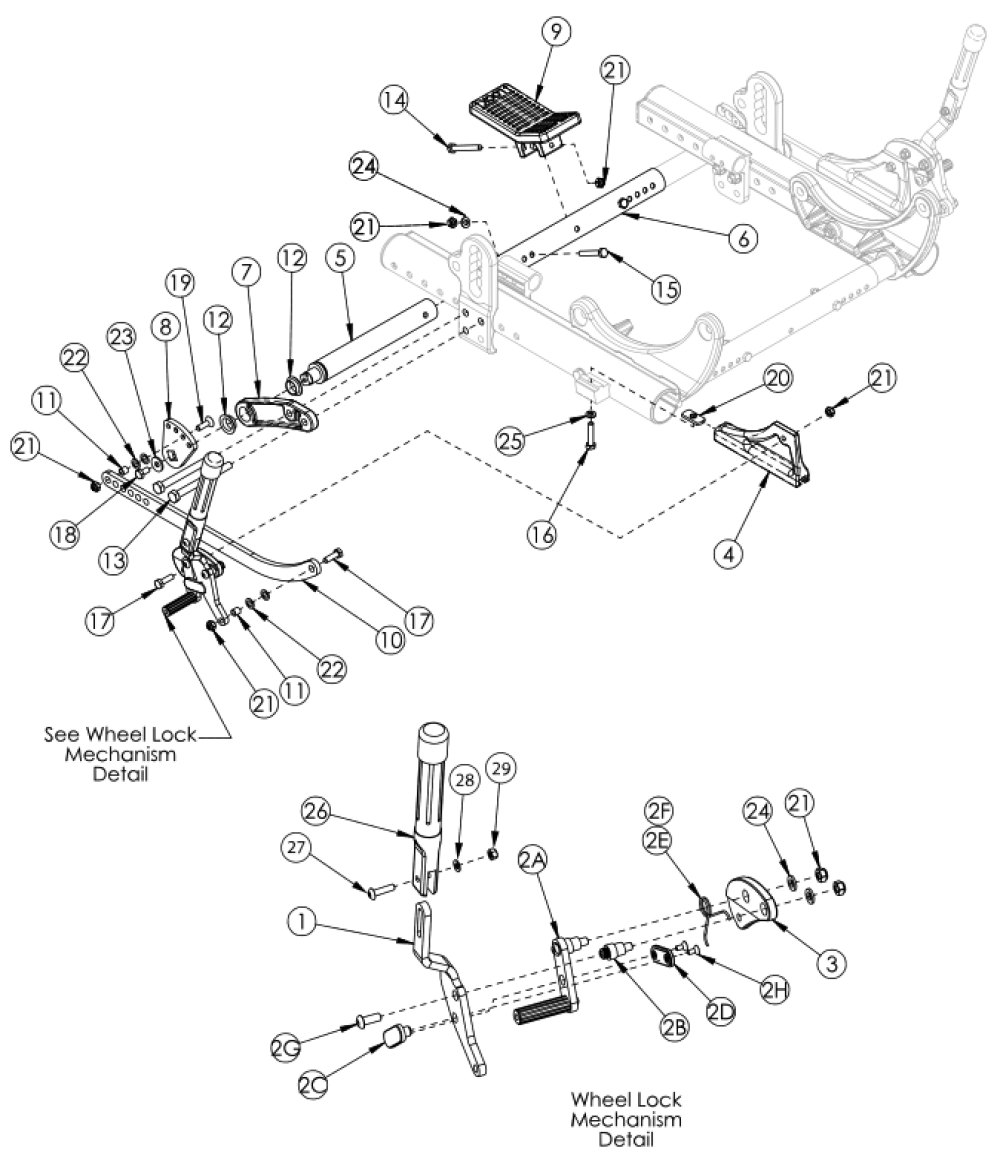

Focus Cr Combination Attendant Foot Lock parts diagram
(Click on image to enlarge)

Standard vs Inverted Axle PlatesGrowth Struts based on Frame Width Range
Pos. Part # Description Price UOM Buy
1a, 2a - 2h, 26 - 29 003393 Combo Wheel Lock Assembly Push with Extension, Right
$54.58
EA
1b, 2a - 2h, 26 - 29 003394 Combo Wheel Lock Assembly Push with Extension, Left
$54.58
EA
1a, 1b, 2a - 2h, 26 - 29 503737 Combo Wheel lock Assembly Push with Extension PAIR- Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock is already present. Contains parts needed for push to lock.
$109.12
EA
1 - 5, 7 - 9, 10, 11 - 14, 16 - 29 503738 Combo Foot Lock Kit, 12-16" Wheel- Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock is not present. Contains parts needed for push to lock. In addition, please note the appropriate Base/Axle/Foot Lock Strut Assembly is required.
$681.02
EA
6a, 15, 21, 24 501123 Base/Axle/Foot Lock Strut Assembly Small Focus
$27.74
EA
6b, 15, 21, 24 501124 Base/Axle/Foot Lock Strut Assembly Medium Focus
$27.74
EA
6c, 15, 21, 24 501125 Base/Axle/Foot Lock Strut Assembly Large Focus
$27.74
EA
6d, 15, 21, 24 114284 Base/Axle/Foot Lock Strut Assembly X-Large Focus
$30.08
EA
3 003771 Foot Wheel Lock Mount Tilt- Replaced 001296
$33.33
4a 001138 Plate Wheel Lock Right Tilt
$18.27
EA
4b 001139 Plate Wheel Lock Left Tilt
$18.27
EA
5 001145 Strut Foot Lock Tilt
$84.32
6a 001011 Growth Strut, Base, Small Tilt
$21.18
EA
6b 001012 Growth Strut, Base, Medium Tilt
$21.18
EA
6c 001013 Growth Strut, Base, Large Tilt
$21.18
EA
6d 112005 Growth Strut, Base, X-Large Tilt
$23.50
EA
7 001427 Tube Mount Foot Lock Tilt
$20.00
8 001150 Index Plate Foot Lock Tilt
$36.99
9 001397 Pedal Foot Lock 2-Way Tilt
$12.23
EA
10 001428 Linkage Foot Lock Short TILT- Used with 12" - 16" rear wheels
$30.00
11 001156 Pivot Bushing Tilt
$6.29
12 001157 IGUS Bushing GFM-1618-06
$17.65
13a 102384 M8 x 100 HHCS Blk Zc Part THD- Use quantity 1 of 102384 and quantity 1 of 101832 per side when Foot Tilt is present
$4.12
13b 101832 M8 x 90 HHCS Blk Zn- Use quantity 2 per side when Hand Tilt is present
$4.12
EA
14 101826 M6 x 50 HHCS Blk Zn
$2.36
EA
15 101825 M6 x 40 HHCS Blk Zn
$1.17
EA
16 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
17 101823 M6 x 20 HHCS Blk Zn
$1.17
EA
18 101822 M6 x 12 HHCS BLKZC w/Patch
$1.17
EA
19 100866 M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch
$2.94
20 001141 Weld Nut NDM 06028 Zinc
$2.94
EA
21 100658 M6 Nylock Nut Blk Zn
$1.17
EA
22 101861 Nylon Washer 5/16 x 1/2 x .03
$0.60
EA
23 101853 M6 Washer Blk Zn
$0.60
EA
24 100746 M6 Flat Washer Blk Zn
$1.77
EA
25 101835 M6 Lock Washer Blk Zn
$0.60
EA
26 - 29 100854 Brake Extension Replacement
$39.98
EA
27 101117 M5 x 22 BTN SHCS BLK ZC
$1.77
EA
28 101856 Flat Washer, M5, Blk Zn
$0.60
EA
29 100657 M5 Nylock Nut Blk Zn
$0.60
EA
7, 12 501435 Foot Lock Tube Mount with Bearings Focus
$27.90
EA
